CH-LP2 Parallel beam sensor

Product features: THE CH-LP2 aluminum parallel beam weighing sensor is of single-point bearing structure, which has been adjusted in four corners to ensure that its output is consistent at all points in the specified loading plane.The structure of the product ...

OnlineTel
156-2185-0939

Product intro

Product

Product name：CH-LP2 Parallel beam sensor

Product features：THE CH-LP2 aluminum parallel beam weighing sensor is of single-point bearing structure, which has been adjusted in four corners to ensure that its output is consistent at all points in the specified loading plane.The structure of the product is simple and easy to use.Suitable for making all kinds of electronic platform scales composed of single sensor.

Range：50N(5kg)、100N(10kg)、150N(15kg)、200N(20kg)、300N(30kg)、400N(40kg)、500N(50kg)、750N(75kg)、1000N(100kg)、2000N(200kg)

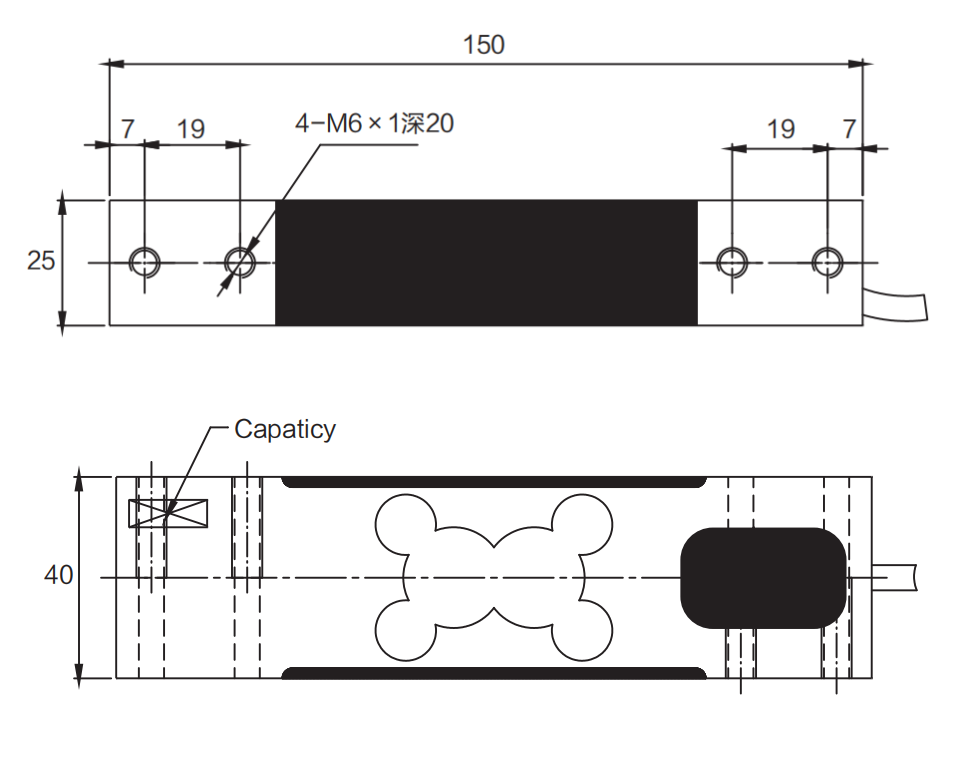

Dimensions：

Specifications：

Specifications
Rated Output	2.0mV/V±5%	Input impedance	410±15Ω
Non-linearity	±0.02%F.S	Output impedance	350±5Ω
Hysteresis	＜±0.02%F.S	Insulation resistance	≥5000MΩ
Repeatability	＜±0.02%F.S	Allow excitation voltage	5～15V/DC
Creep	＜±0.02%F.S/30min	Compensated temp. range	-10℃～+40℃
Temp. effect on zero	＜±0.02%/10℃	Operating temp. range	-30℃～+70℃
Temp. effect on span	＜±0.02%/10℃	Safe overload	150%F.S
Zero balance	＜±1%F.S	Ultimate overload	200%F.S
Connection	Excitation：+ Red - Black Signal： + Green - White Shield： Thick Yellow
